DeyeInverter ibridu5–12 kW

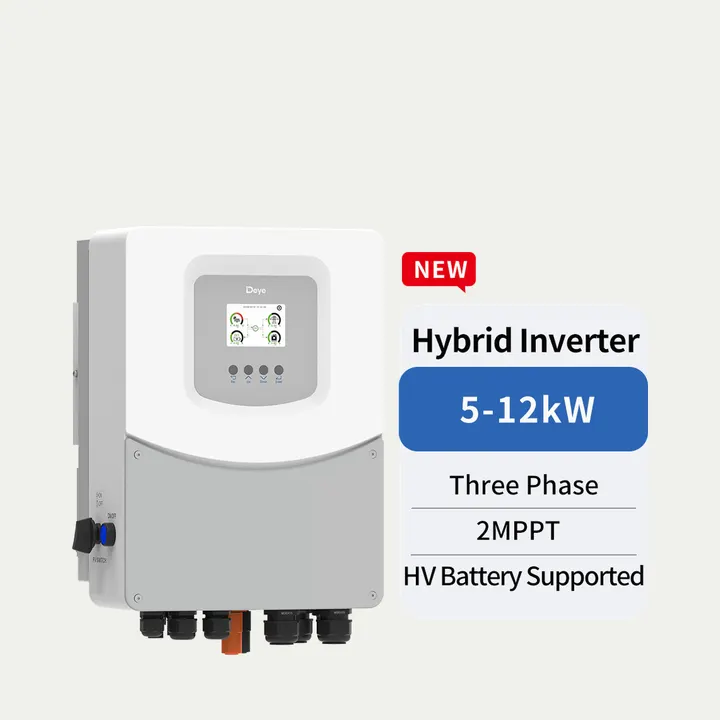

SUN-5/6/8/10/12K-SG02HP3-EU-DM2

SUN-5-12K-SG02HP3-EU-DM2

Il-SUN-5/6/8/10/12K-SG02HP3-EU-DM2 hija serje ta' inverters ibridi trifażi għal batteriji ta' vultaġġ għoli: tmexxi s-sistema ta' pannelli solari, il-batterija u l-konnessjoni mal-grilja minn unità waħda. Jiġi f'5 mudelli., valur nominali 5–12 kW.

Nikkwotawh waħdu jew bħala parti minn sistema mqabbla ma' batteriji u aċċessorji Deye. Id-disponibbiltà, iż-żmien tal-kunsinna u l-kunsinna fis-sit tiegħek jiġu kkonfermati fil-kwotazzjoni bil-miktub.

Itlob kwotazzjoniData sheet (PDF fuq is-server ta' Deye, jinfetaħ f'tab ġdida)

L-ebda prezz onlajn: kull ordni tiġi kkwotata bil-miktub.

Kategorija tal-manifattur
Three Phase High Voltage Hybrid Inverter
Valur nominali
5–12 kW
Fażijiet
3-phase
Vultaġġ tal-batterija
ta' vultaġġ għoli
Mudelli f'din il-paġna
5
Deye SUN-5/6/8/10/12K-SG02HP3-EU-DM2

Mudelli

MudellValur nominali
SUN-5K-SG02HP3-EU-DM25 kW
SUN-6K-SG02HP3-EU-DM26 kW
SUN-8K-SG02HP3-EU-DM28 kW
SUN-10K-SG02HP3-EU-DM210 kW
SUN-12K-SG02HP3-EU-DM212 kW

Speċifikazzjonijiet tekniċi

Valuri kif ippubblikati mill-manifattur, kolonna waħda għal kull mudell fejn it-tabella tal-manifattur ikollha.

Aqbeż għal grupp

Valur fil-kolonni kollha tal-mudelli huwa l-istess għal kull mudell.

Battery Input Data
MudellSUN-5K-SG02HP3-EU-DM2SUN-6K-SG02HP3-EU-DM2SUN-8K-SG02HP3-EU-DM2SUN-10K-SG02HP3-EU-DM2SUN-12K-SG02HP3-EU-DM2
Battery TypeLithium-ion
Battery Voltage Range(V)130-700
Max. Charging/Discharging Current (A)3737555555
Charging Strategy for Li-ion BatterySelf-adaption to BMS
Number of Battery Input1
PV String Input Data
MudellSUN-5K-SG02HP3-EU-DM2SUN-6K-SG02HP3-EU-DM2SUN-8K-SG02HP3-EU-DM2SUN-10K-SG02HP3-EU-DM2SUN-12K-SG02HP3-EU-DM2
Max. PV Access Power (W)1000012000160002000024000
Max. PV Input Power (W)80009600128001600019200
Max. PV Input Voltage (V)1000
Start-up Voltage (V)130
MPPT Voltage Range (V)150-850
Rated PV Input Voltage (V)600
Max. Operating PV Input Current (A)20+20
Max. Input Short-Circuit Current (A)30+30
No.of MPP Trackers/No.of Strings MPP Tracker2/1+1
AC Input/Output Data
MudellSUN-5K-SG02HP3-EU-DM2SUN-6K-SG02HP3-EU-DM2SUN-8K-SG02HP3-EU-DM2SUN-10K-SG02HP3-EU-DM2SUN-12K-SG02HP3-EU-DM2
Rated AC Input/Output Active Power (W)5000600080001000012000
Max. AC Input/Output Apparent Power (VA)5500660088001100013200
Rated AC Input/Output Current (A)7.6/7.39.1/8.712.2/11.615.2/14.518.2/17.4
Max. AC Input/Output Current (A)8.4/8.010/9.613.4/12.816.7/1620/19.2
Max. Continuous AC Passthrough (grid to load) (A)35
Peak Power (off-grid)(W)1.5 times of rated power,10s
Power Factor Adjustment Range0.8 leading to 0.8 lagging
Rated Input/Output Voltage220/380V,230/400V 0.85Un-1.1Un 3L+N+PE
Rated Input/Output Grid Frequency/Range(Hz)50/45-55, 60/55-65
Total Current Harmonic Distortion THDi<3%
DC Injection Current<0.5%ln
Efficiency
MudellSUN-5K-SG02HP3-EU-DM2SUN-6K-SG02HP3-EU-DM2SUN-8K-SG02HP3-EU-DM2SUN-10K-SG02HP3-EU-DM2SUN-12K-SG02HP3-EU-DM2
Max. Efficiency97.6%
Euro Efficiency97.0%
MPPT Efficiency>99%
Equipment Protection
MudellSUN-5K-SG02HP3-EU-DM2SUN-6K-SG02HP3-EU-DM2SUN-8K-SG02HP3-EU-DM2SUN-10K-SG02HP3-EU-DM2SUN-12K-SG02HP3-EU-DM2
IntegratedDC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection LevelTYPE II(DC), TYPE II(AC)
Interface
MudellSUN-5K-SG02HP3-EU-DM2SUN-6K-SG02HP3-EU-DM2SUN-8K-SG02HP3-EU-DM2SUN-10K-SG02HP3-EU-DM2SUN-12K-SG02HP3-EU-DM2
LCD/LED DisplayLCD+LED
Communication InterfaceRS485, RS232, CAN
Monitor ModeGPRS/WIFI/Bluetooth/4G/LAN (optional)
General Data
MudellSUN-5K-SG02HP3-EU-DM2SUN-6K-SG02HP3-EU-DM2SUN-8K-SG02HP3-EU-DM2SUN-10K-SG02HP3-EU-DM2SUN-12K-SG02HP3-EU-DM2
Operating Temperature Range (℃)-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity0-100%
Permissible Altitude2000m
Noise (dB)≤45
Ingress Protection(IP) RatingIP 65
Inverter TopologyNon-Isolated
Over Voltage CategoryOVC II(DC),OVC III(AC)
Type Of CoolingNatural CoolingNatural CoolingIntelligent Air CoolingIntelligent Air CoolingIntelligent Air Cooling
Warranty5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details.
Grid RegulationIEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Dokumenti

Id-dokumenti kollha jinfetħu mis-servers tal-manifattur stess, u għalhekk dejjem tikseb il-fajl li Deye bħalissa jippubblika. Il-biċċa l-kbira huma bl-Ingliż.

Karatteristiċi ewlenin

Kif elenkati mill-manifattur.

  • AC couple to retrofifit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 37A
  • High voltage battery, higher efficiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
  • 100% unbalanced output

Din is-serje taħdem ma' batteriji ta' vultaġġ għoli. Il-firxa ta' vultaġġ għoli ta' Deye tinsab fis-sit web tagħna għall-batteriji; dejjem iċċekkja l-lista ta' kompatibbiltà tal-batteriji fid-data sheet tal-inverter.

deye-batteries.com (jinfetaħ f'tab ġdida)

Negozjant indipendentiSECURISTIKA SRL huwa negozjant indipendenti tal-prodotti Deye. Dan is-sit web mhuwiex affiljat ma', approvat minn jew imħaddem mill-manifattur.

Speċifikazzjonijiet, karatteristiċi u dokumenti kif ippubblikati mill-manifattur. Iċċekkja d-data sheet attwali qabel tordna. Paġna tas-sors (jinfetaħ f'tab ġdida)
