DeyeInverter ibridu3–12 kW

SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2

SUN-3-12K-SG05LP3-EU-SM2

Il-SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2 hija serje ta' inverters ibridi trifażi għal batteriji ta' vultaġġ baxx: tmexxi s-sistema ta' pannelli solari, il-batterija u l-konnessjoni mal-grilja minn unità waħda. Jiġi f'7 mudelli., valur nominali 3–12 kW.

Nikkwotawh waħdu jew bħala parti minn sistema mqabbla ma' batteriji u aċċessorji Deye. Id-disponibbiltà, iż-żmien tal-kunsinna u l-kunsinna fis-sit tiegħek jiġu kkonfermati fil-kwotazzjoni bil-miktub.

Itlob kwotazzjoniData sheet (PDF fuq is-server ta' Deye, jinfetaħ f'tab ġdida)

L-ebda prezz onlajn: kull ordni tiġi kkwotata bil-miktub.

Kategorija tal-manifattur
Three Phase Low Voltage Hybrid Inverter
Valur nominali
3–12 kW
Fażijiet
3-phase
Vultaġġ tal-batterija
ta' vultaġġ baxx
Mudelli f'din il-paġna
7

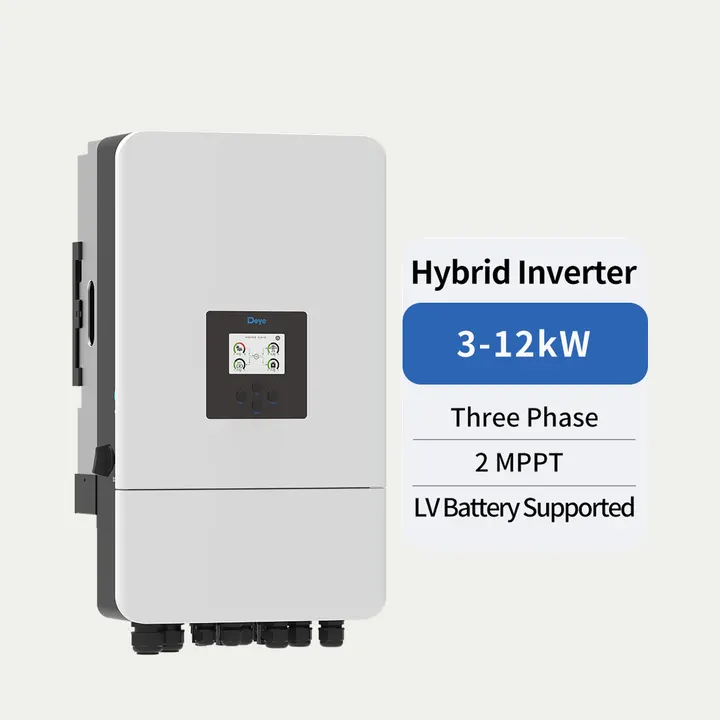

Deye SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2

Mudelli

MudellValur nominali
SUN-3K-SG05LP3-EU-SM23 kW
SUN-4K-SG05LP3-EU-SM24 kW
SUN-5K-SG05LP3-EU-SM25 kW
SUN-6K-SG05LP3-EU-SM26 kW
SUN-8K-SG05LP3-EU-SM28 kW
SUN-10K-SG05LP3-EU-SM210 kW
SUN-12K-SG05LP3-EU-SM212 kW

Speċifikazzjonijiet tekniċi

Valuri kif ippubblikati mill-manifattur, kolonna waħda għal kull mudell fejn it-tabella tal-manifattur ikollha.

Aqbeż għal grupp

Valur fil-kolonni kollha tal-mudelli huwa l-istess għal kull mudell.

Battery Input Data
MudellSUN-3K-SG05LP3-EU-SM2SUN-4K-SG05LP3-EU-SM2SUN-5K-SG05LP3-EU-SM2SUN-6K-SG05LP3-EU-SM2SUN-8K-SG05LP3-EU-SM2SUN-10K-SG05LP3-EU-SM2SUN-12K-SG05LP3-EU-SM2
Battery TypeLead-acid or Lithium-ion
Battery Voltage Range (V)40-60
Max. Charging/Discharging Current (A)7095120135190210240
Charging Strategy for Li-ion BatterySelf-adaption to BMS
Number of Battery Input1
PV String Input Data
MudellSUN-3K-SG05LP3-EU-SM2SUN-4K-SG05LP3-EU-SM2SUN-5K-SG05LP3-EU-SM2SUN-6K-SG05LP3-EU-SM2SUN-8K-SG05LP3-EU-SM2SUN-10K-SG05LP3-EU-SM2SUN-12K-SG05LP3-EU-SM2
Max. PV Access Power (W)600080001000012000160002000024000
Max. PV Input Power (W)4500640080009600128001600019200
Max. PV Input Voltage (V)800
Start-up Voltage (V)160
MPPT Voltage Range (V)200-650
Rated PV Input Voltage (V)550
Max. Operating PV Input Current (A)20+2020+2020+2020+2020+2026+2626+26
Max. Input Short-Circuit Current (A)30+3030+3030+3030+3030+3039+3939+39
No. of MPP Trackers/No. of Strings MPP Tracker2/1+12/1+12/1+12/1+12/1+12/2+22/2+2
AC Input/Output Data
MudellSUN-3K-SG05LP3-EU-SM2SUN-4K-SG05LP3-EU-SM2SUN-5K-SG05LP3-EU-SM2SUN-6K-SG05LP3-EU-SM2SUN-8K-SG05LP3-EU-SM2SUN-10K-SG05LP3-EU-SM2SUN-12K-SG05LP3-EU-SM2
Rated AC Input/Output Active Power (W)300040005000600080001000012000
Max. AC Input/Output Apparent Power (VA)330044005500660088001100013200
Rated AC Input/Output Current (A)4.6/4.46.1/5.87.6/7.39.1/8.712.2/11.615.2/14.518.2/17.4
Max. AC Input/Output Current (A)5/4.86.7/6.48.4/810/9.613.4/12.816.7/1620/19.2
Max. Continuous AC Passthrough (grid to load) (A)45
Peak Power (off-grid) (W)2 times of rated power, 10s
Power Factor Adjustment Range0.8 leading to 0.8 lagging
Rated Input/Output Voltage220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE
Rated Input/Output Grid Frequency/Range(Hz)50/45-55, 60/55-65
Total Current Harmonic Distortion THDi<3% (of nominal power)
DC Injection Current<0.5% In
Efficiency
MudellSUN-3K-SG05LP3-EU-SM2SUN-4K-SG05LP3-EU-SM2SUN-5K-SG05LP3-EU-SM2SUN-6K-SG05LP3-EU-SM2SUN-8K-SG05LP3-EU-SM2SUN-10K-SG05LP3-EU-SM2SUN-12K-SG05LP3-EU-SM2
Max. Efficiency97.6%
Euro Efficiency97.0%
MPPT Efficiency>99%
Equipment Protection
MudellSUN-3K-SG05LP3-EU-SM2SUN-4K-SG05LP3-EU-SM2SUN-5K-SG05LP3-EU-SM2SUN-6K-SG05LP3-EU-SM2SUN-8K-SG05LP3-EU-SM2SUN-10K-SG05LP3-EU-SM2SUN-12K-SG05LP3-EU-SM2
IntegratedDC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection LevelTYPE II(DC),TYPE II(AC)
Interface
MudellSUN-3K-SG05LP3-EU-SM2SUN-4K-SG05LP3-EU-SM2SUN-5K-SG05LP3-EU-SM2SUN-6K-SG05LP3-EU-SM2SUN-8K-SG05LP3-EU-SM2SUN-10K-SG05LP3-EU-SM2SUN-12K-SG05LP3-EU-SM2
LCD/LED DisplayLCD
Communication InterfaceWIFI,RS485,CAN
General Data
MudellSUN-3K-SG05LP3-EU-SM2SUN-4K-SG05LP3-EU-SM2SUN-5K-SG05LP3-EU-SM2SUN-6K-SG05LP3-EU-SM2SUN-8K-SG05LP3-EU-SM2SUN-10K-SG05LP3-EU-SM2SUN-12K-SG05LP3-EU-SM2
Operating Temperature Range (℃)-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity0-100%
Permissible Altitude3000m
Noise (dB)≤55
Ingress Protection(IP) RatingIP 65
Inverter TopologyNon-Isolated (solar), Isolated (battery)
Over Voltage CategoryOVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)386×660×250 (Excluding Connectors and Brackets)
Weight (kg)35.2
Type of CoolingIntelligent Air Cooling
Warranty5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details.
Grid RegulationIEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety / EMC StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Dokumenti

19 ċertifikat rilevanti għall-UE

Dikjarazzjonijiet ta' konformità tal-UE, ċertifikati tat-test EN u IEC u ċertifikati tar-rekwiżiti tal-konnessjoni mal-grilja tal-UE, kif ippubblikati mill-manifattur. Ċertifikati għal swieq barra mill-UE mhumiex elenkati.

Id-dokumenti kollha jinfetħu mis-servers tal-manifattur stess, u għalhekk dejjem tikseb il-fajl li Deye bħalissa jippubblika. Il-biċċa l-kbira huma bl-Ingliż.

Karatteristiċi ewlenin

Kif elenkati mill-manifattur.

  • 100% unbalanced output, max. output up to 50% rated power for each phase
  • AC couple to retrofit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries parallel
  • Max. charging/discharging current of 240A
  • Support storing energy from diesel generator
  • 48V low voltage battery, transformer isolation design
  • 6 time periods for battery charging/discharging

Din is-serje taħdem ma' batteriji ta' vultaġġ baxx. Il-firxa ta' vultaġġ baxx ta' Deye tinsab fis-sit web tagħna għall-batteriji; dejjem iċċekkja l-lista ta' kompatibbiltà tal-batteriji fid-data sheet tal-inverter.

deye-batteries.com (jinfetaħ f'tab ġdida)

Negozjant indipendentiSECURISTIKA SRL huwa negozjant indipendenti tal-prodotti Deye. Dan is-sit web mhuwiex affiljat ma', approvat minn jew imħaddem mill-manifattur.

Speċifikazzjonijiet, karatteristiċi u dokumenti kif ippubblikati mill-manifattur. Iċċekkja d-data sheet attwali qabel tordna. Paġna tas-sors (jinfetaħ f'tab ġdida)
