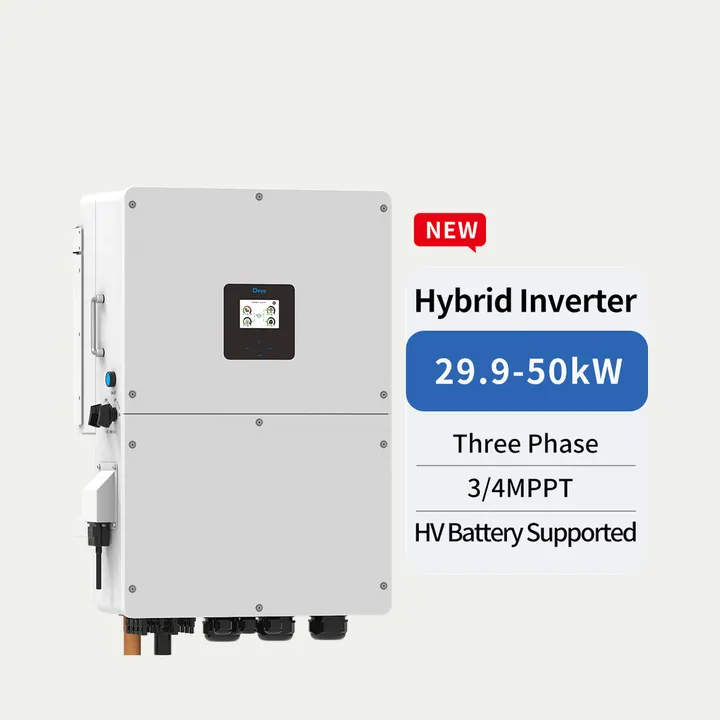

SUN-29.9/30/35/40/50K-SG02HP3-EU-BM3/BM4-P
SUN-29.9-50K-SG02HP3-EU-BM3/BM4-P
SUN-29.9/30/35/40/50K-SG02HP3-EU-BM3/BM4-P er en trefaset hybridinverterserie til batterier med højspænding: den styrer solcelleanlægget, batteriet og nettilslutningen fra én enhed. Den fås i 5 modeller med en nominel effekt på 29,9–50 kW.
Vi giver tilbud på inverteren alene eller som en del af et afstemt system med Deye-batterier og tilbehør. Tilgængelighed, leveringstid og levering til din adresse bekræftes i det skriftlige tilbud.
Ingen priser online: hver ordre får et skriftligt tilbud.
- Producentens kategori
- Three Phase High Voltage Hybrid Inverter
- Nominel værdi
- 29,9–50 kW
- Faser
- 3-phase
- Batterispænding
- højspænding
- Modeller på denne side
- 5
Modeller
| Model | Nominel værdi |
|---|---|
| SUN-29.9K-SG02HP3-EU-BM3-P | 29,9 kW |
| SUN-30K-SG02HP3-EU-BM3-P | 30 kW |
| SUN-35K-SG02HP3-EU-BM3-P | 35 kW |
| SUN-40K-SG02HP3-EU-BM4-P | 40 kW |
| SUN-50K-SG02HP3-EU-BM4-P | 50 kW |
Tekniske specifikationer
Værdier som offentliggjort af producenten, én kolonne pr. model hvor producentens tabel har dem.
En værdi der strækker sig over alle modelkolonner, er den samme for alle modeller.
| Model | SUN-29.9K-SG02HP3-EU-BM3-P | SUN-30K-SG02HP3-EU-BM3-P | SUN-35K-SG02HP3-EU-BM3-P | SUN-40K-SG02HP3-EU-BM4-P | SUN-50K-SG02HP3-EU-BM4-P |
|---|---|---|---|---|---|
| Battery Type | Lithium-ion | ||||
| Battery Voltage Range(V) | 160-800 | ||||
| Max. Charging/Discharging Current (A) | 160 | ||||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of battery input | 1 | ||||
| Model | SUN-29.9K-SG02HP3-EU-BM3-P | SUN-30K-SG02HP3-EU-BM3-P | SUN-35K-SG02HP3-EU-BM3-P | SUN-40K-SG02HP3-EU-BM4-P | SUN-50K-SG02HP3-EU-BM4-P |
|---|---|---|---|---|---|
| Max. PV Access Power (W) | 59800 | 60000 | 70000 | 80000 | 100000 |
| Max DC Input Power (W) | 47840 | 48000 | 56000 | 64000 | 80000 |
| Max DC Input Voltage (V) | 1000 | ||||
| Start-up Voltage (V) | 180 | ||||
| MPPT Voltage Range (V) | 150-850 | ||||
| Rated DC Input Voltage(V) | 600 | ||||
| Max Input Short-Circuit Current (A) | 55+55+55 | 55+55+55 | 55+55+55 | 55+55+55+55 | 55+55+55+55 |
| Max Operating PV Input Current (A) | 36+36+36 | 36+36+36 | 36+36+36 | 36+36+36+36 | 36+36+36+36 |
| No.of MPP Trackers/No.of String Per MPP Tracker | 3/2+2+2 | 3/2+2+2 | 3/2+2+2 | 4/2+2+2+2 | 4/2+2+2+2 |
| Model | SUN-29.9K-SG02HP3-EU-BM3-P | SUN-30K-SG02HP3-EU-BM3-P | SUN-35K-SG02HP3-EU-BM3-P | SUN-40K-SG02HP3-EU-BM4-P | SUN-50K-SG02HP3-EU-BM4-P |
|---|---|---|---|---|---|
| Rated AC Input/Output Active Power (W) | 29900 | 30000 | 35000 | 40000 | 50000 |
| Max AC Input/Output Apparent Power (VA) | 29900 | 33000 | 38500 | 44000 | 55000 |
| Peak Power (off-grid)(W) | 1.5 times of rated power,10s | ||||
| Rated AC Input/Output Current (A) | 45.4/43.4 | 45.5/43.5 | 53.1/50.8 | 60.7/58.0 | 75.8/72.5 |
| Max AC Input/Output Current (A) | 45.4/43.4 | 50/47.9 | 58.4/55.8 | 66.7/63.8 | 83.4/79.8 |
| Max Continuous AC Passthrough (grid to load)(A) | 200 | ||||
| Rated Input/Output Voltage/Range(V) | 220/380V,230/400V 0.85Un-1.1Un 3L+N+PE | ||||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||||
| Power Factor Adjustment Range | 0.8 leading-0.8 lagging | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Injection Current | <0.5%ln | ||||
| Model | SUN-29.9K-SG02HP3-EU-BM3-P | SUN-30K-SG02HP3-EU-BM3-P | SUN-35K-SG02HP3-EU-BM3-P | SUN-40K-SG02HP3-EU-BM4-P | SUN-50K-SG02HP3-EU-BM4-P |
|---|---|---|---|---|---|
| Max Efficiency | 97.60% | ||||
| Euro Efficiency | 97.0% | ||||
| MPPT Efficiency | >99% | ||||
| Model | SUN-29.9K-SG02HP3-EU-BM3-P | SUN-30K-SG02HP3-EU-BM3-P | SUN-35K-SG02HP3-EU-BM3-P | SUN-40K-SG02HP3-EU-BM4-P | SUN-50K-SG02HP3-EU-BM4-P |
|---|---|---|---|---|---|
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | ||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||
| Model | SUN-29.9K-SG02HP3-EU-BM3-P | SUN-30K-SG02HP3-EU-BM3-P | SUN-35K-SG02HP3-EU-BM3-P | SUN-40K-SG02HP3-EU-BM4-P | SUN-50K-SG02HP3-EU-BM4-P |
|---|---|---|---|---|---|
| LCD/LED Display | LCD | ||||
| Communication Interface | WIFI/RS485/CAN | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G | ||||
| Model | SUN-29.9K-SG02HP3-EU-BM3-P | SUN-30K-SG02HP3-EU-BM3-P | SUN-35K-SG02HP3-EU-BM3-P | SUN-40K-SG02HP3-EU-BM4-P | SUN-50K-SG02HP3-EU-BM4-P |
|---|---|---|---|---|---|
| Operating Temperature Range | -40℃+60℃,>45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 3000m | ||||
| Noise | ≤ 65 dB(A) | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
| Cabinet size (W*H*D)[mm] | 528*793*278 (Excluding connectors and brackets) | ||||
| Weight[kg] | 65 | ||||
| Warranty | 5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. | ||||
| Type Of Cooling | Intelligent air cooling | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
Dokumenter
- Datasheet (2026-09-12)Datablad · EN · 288 KB · PDF ↗
- User manual (2026-05-05)Manual · EN · 21,6 MB · PDF ↗
Alle dokumenter åbnes fra producentens egne servere, så du altid får den fil Deye aktuelt offentliggør. De fleste er på engelsk.
Vigtigste funktioner
Som angivet af producenten.
- AC couple to retrofifit existing solar system
- Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 160A
- High voltage battery, higher efficiency
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator
- 100% unbalanced output
Denne serie arbejder med højspændingsbatterier. Deyes højspændingsbatterier finder du på vores hjemmeside for batterier; tjek altid batterikompatibilitetslisten i inverterens datablad.
