DeyeMikroinverter1.3–2.25 kW

SUN-S130/160/180/200/220/225G4-EU-Q0

SUN-S130-225G4-EU-Q0

Il-SUN-S130/160/180/200/220/225G4-EU-Q0 hija serje ta' mikroinverters: kull unità titqiegħed ħdejn il-pannelli li sservi, u għalhekk dell fuq pannell wieħed ma jtellifx lill-oħrajn. Jiġi f'6 mudelli., valur nominali 1.3–2.25 kW.

Nikkwotawh waħdu jew bħala parti minn sistema mqabbla ma' batteriji u aċċessorji Deye. Id-disponibbiltà, iż-żmien tal-kunsinna u l-kunsinna fis-sit tiegħek jiġu kkonfermati fil-kwotazzjoni bil-miktub.

Itlob kwotazzjoniData sheet (PDF fuq is-server ta' Deye, jinfetaħ f'tab ġdida)

L-ebda prezz onlajn: kull ordni tiġi kkwotata bil-miktub.

Kategorija tal-manifattur
Microinverter
Valur nominali
1.3–2.25 kW
Mudelli f'din il-paġna
6

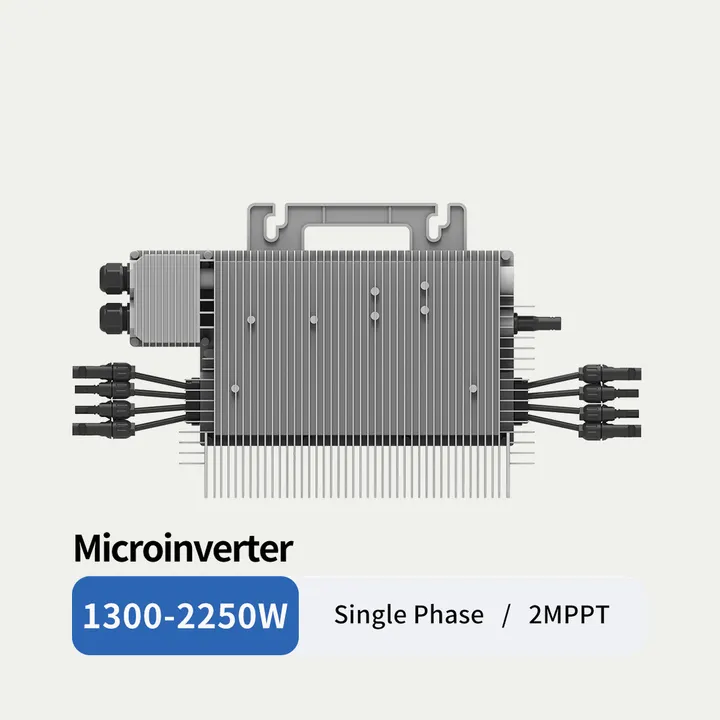

Deye SUN-S130/160/180/200/220/225G4-EU-Q0

Mudelli

MudellValur nominali
SUN-S130G4-EU-Q01.3 kW
SUN-S160G4-EU-Q01.6 kW
SUN-S180G4-EU-Q01.8 kW
SUN-S200G4-EU-Q02 kW
SUN-S220G4-EU-Q02.2 kW
SUN-S225G4-EU-Q02.25 kW

Speċifikazzjonijiet tekniċi

Valuri kif ippubblikati mill-manifattur, kolonna waħda għal kull mudell fejn it-tabella tal-manifattur ikollha.

Aqbeż għal grupp

Valur fil-kolonni kollha tal-mudelli huwa l-istess għal kull mudell.

PV String Input Data
MudellSUN-S130G4-EU-Q0SUN-S160G4-EU-Q0SUN-S180G4-EU-Q0SUN-S200G4-EU-Q0SUN-S220G4-EU-Q0SUN-S225G4-EU-Q0
Max. PV Input Power(W)210-460 (4 Pieces)210-560 (4 Pieces)210-630 (4 Pieces)210-700 (4 Pieces)210-770 (4 Pieces)210-790 (4 Pieces)
Max. PV Input Voltage(V)60
Start-up Voltage(V)20
MPPT Voltage Range (V)25-55
Rated PV Input voltage(V)42.5
Max. Operating PV Input Current (A)16+16+16+16
Max. Input Short Circuit Current (A)24+24+24+24
No. of MPP Trackers/No. of Strings MPP Tracker2/2+2
AC Output Data
MudellSUN-S130G4-EU-Q0SUN-S160G4-EU-Q0SUN-S180G4-EU-Q0SUN-S200G4-EU-Q0SUN-S220G4-EU-Q0SUN-S225G4-EU-Q0
Rated AC Output Active Power(W)130016001800200022002250
Max.AC Output Apparent Power(VA)130016001800200022002250
Rated AC Output Current (A)6/5.77.3/78.2/7.99.1/8.710/9.610.3/9.8
Max.AC Output Current(A)6/5.77.3/78.2/7.99.1/8.710/9.610.3/9.8
Max. Unit per Branch543333
Rated input/output voltage220/230V 0.85Un-1.1Un L/N/PE
Rated Output Grid Frequency/Range(Hz)50/45-55, 60/55-65
Power Factor Adjustment Range0.9 leading to 0.9 lagging
Total Current Harmonic Distortion THDi<3%
DC Injection Current<0.5%ln
Efficiency
MudellSUN-S130G4-EU-Q0SUN-S160G4-EU-Q0SUN-S180G4-EU-Q0SUN-S200G4-EU-Q0SUN-S220G4-EU-Q0SUN-S225G4-EU-Q0
Max. Efficiency96.5%
Euro Efficiency96.0%
MPPT Efficiency>99%
Equipment Protection
MudellSUN-S130G4-EU-Q0SUN-S160G4-EU-Q0SUN-S180G4-EU-Q0SUN-S200G4-EU-Q0SUN-S220G4-EU-Q0SUN-S225G4-EU-Q0
DC Reverse Polarity ProtectionYes
AC Output Overcurrent ProtectionYes
AC Output Overvoltage ProtectionYes
AC Output Short Circuit ProtectionYes
Thermal ProtectionYes
Insulation Impedance DetectionYes
Anti-islanding ProtectionYes
Surge Protection LevelTYPE II(AC)
Interface
MudellSUN-S130G4-EU-Q0SUN-S160G4-EU-Q0SUN-S180G4-EU-Q0SUN-S200G4-EU-Q0SUN-S220G4-EU-Q0SUN-S225G4-EU-Q0
Communication InterfaceWi-Fi
General Data
MudellSUN-S130G4-EU-Q0SUN-S160G4-EU-Q0SUN-S180G4-EU-Q0SUN-S200G4-EU-Q0SUN-S220G4-EU-Q0SUN-S225G4-EU-Q0
Operating Temperature Range (°C)-40 to +65℃, >45℃ Derating
Permissible Ambient Humidity0~100%
Permissible Altitude (m)2000m
Noise (dB)≤ 25
Ingress Protection(IP) RatingIP 67
Inverter TopologyIsolated
Over Voltage CategoryOVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm)366×236×38 (Excluding Connectors and Brackets)
Weight (kg)4.66
Warranty10 Years
Type Of CoolingNatural Cooling
Grid RegulationIEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105
Safety EMC/StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Dokumenti

  • DatasheetData sheet · EN · 381 KB · PDF ↗

Id-dokumenti kollha jinfetħu mis-servers tal-manifattur stess, u għalhekk dejjem tikseb il-fajl li Deye bħalissa jippubblika. Il-biċċa l-kbira huma bl-Ingliż.

Karatteristiċi ewlenin

Kif elenkati mill-manifattur.

  • Rapid shutdown function
  • Complete NS protection with self-check function
  • IP67 protection degree
  • 25 years design lifetime, 10 years warranty
  • WIFI communication
  • Easy installation, suitable for quick-plug balcony PV systems
  • 2 MPPTs, Up to 4 PV Modules
  • <100ms AC fast discharge, compliant with DIN VDE 0126-95 (<200ms) safety standard
